Product details:

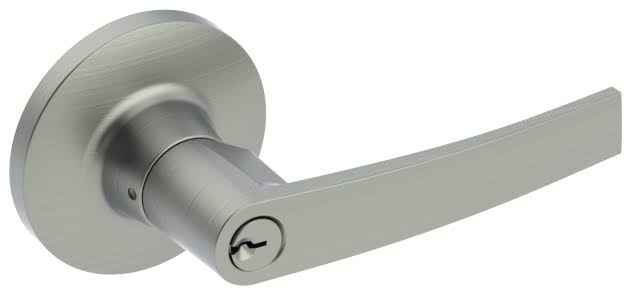

Grade 2 Tubular Lever - Heavy Duty Residential/Medium Duty Commercial Entry/Office - Deadlocking latchbolt operated by lever from either side except when outside lever is locked by push button on inside lever. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button or other locking device and retracts latchbolt. Closing door does not release push button. No exposed mounting screws Non-handed Standard door prep: 2-1/8 in. cross bore and 1 in. edge bore for latch hole Fits door thickness of 1-3/8 in. to 1-3/4 in. Preset at factory for 2-3/8 in. Square Corner Faceplate (1 in. x 2-1/4 in.) as standard. Optional Round Corner Faceplate available upon request. Please specify when ordering. ASA Strike as standard (ANSI 4-7/8 in. x 1-1/4 in.) Optional strikes available upon request. Please specify when ordering. Latchbolt: 1/2 in. throw Stainless Steel Fixed Cylinder as standard. Small Format Interchangeable Core option available upon request (core sold separately). Please specify when ordering. 6 pin Cylinders, 5-pin Keyed. Schlage C Keyway Keyed Different as standard. Other keying and/or keyingways available upon request. Lever styles available: Archer, August, or Withnell Projection: 2-5/8 in. Rose: 2-15/16 in. diameter ADA Compliant ANSI A117.1 Accessibility Code BHMA Certified ANSI A156.2 Series 4000 Grade 2 UL/cUL Listed for all functions up to 3 hours A label single doors; UL10C Positive Pressure Rated; UL10B Neutral Pressure Rated 3653-August-ADJ-SC-US3-H1-3933
